Clean Room Filters

[rank_math_breadcrumb]

Pre Fine & Superfine Filter

Frame : Anodized Aluminium./GIPC/Stainless steel Material
Adhesive : Epoxy based adhesive for leak proof joint between filter media and casing.
Gasket : Felt /Natural Rubber / PE foam gasket as per customers
choice for sealing the filters on mounting frame
Media: Non woven synthetic
Grade/Type:G3 to F9 I Box & Flange
Temperature: Recommended for operating on ambient temperature
Cleaning: Washable by detergent I Water solution or by Air I Vacuum cleaner as per design
Product Range :Filter are available with air handling capacity in the range of 100 CFM to 2000 CFM
Application:For HVAC and Clean room applications

HEPA Deep Pleat Filter

Frame : Anodized Aluminium /GIPC/Stainless Steel
Adhesive : Epoxy based adhesive for leak proof joint between filter media and casing.
Gasket : Sponge rubber / Polyurethane Neoprene gasket provided for sealing of filter on mounting frame
Media: Micro glass fibre synthetic
Grade/Type:H10 to H14/ Box & Flange
Temperature: Recommended for operating temperature upto Ambient
to 150*C
Cleaning: Non-Washable
Product Range :Filter are available with air handling capacity in the
of range 100 CFM to 2000 CFM
Application:For HVAC and Clean room applications

High Temp. HEPA Filter

Frame : Stainless Steel
Adhesive : Silicon based adhesive for leak proof joint between filter media
and casing
Gasket : High temp, gasket.
Media: Micro glass fibre High Temp.
Grade/Type:H10 to H14Z Box & Flange
Temperature: 100*C to 400*C
Cleaning: Non-Washable
Product Range :Filter are available with air handling capacity in the range of
100 CFM to 2000 CFM
Application: For Pharmaceuticals, Dry heat sterilized tunnels

HEPA Minipleat Filter

Frame : : Anodized Aluminum/GIPC/Stainless Steel
Adhesive : Epoxy based adhesive for leak proof joint between filter media
and casing
Gasket : Sponge rubber / Polyurethane Neoprene gasket provided for
sealing of filter on its mounting frame
Media: Micro glass fibre
Grade/Type:F7 to U15/ Box & Flange
Temperature: Recommended for operating on ambient temperature
Cleaning: Non-Washable
Product Range :Filter are available with air handling capacity in the range of
100 CFM to 2000 CFM
Application: For HVAC and Clean room applications

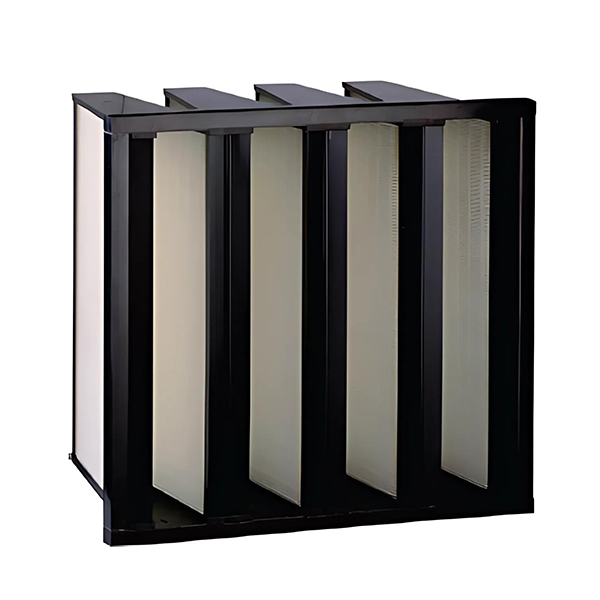

V-Bank Filter

Frame : Anodised Aluminium /Polystrene plastic.
Adhesive : Epoxy based adhesive for leak proof joint between filter media
and casing.
Gasket : Sponge rubber / Polyurethane Neoprene gasket provided for
sealing of filter on mounting frame
Media: Micro glass fibre
Grade/Type: F7 to H14Z Box & Flange
Temperature: Recommended for operating on ambient temperature
Cleaning: Non-Washable
Product Range :Filter are available with air handling capacity in the range of
100 CFM to 2000 CFM
Application:For HVAC and Clean room applications

Gel Seal Minipleat HEPA Filter

Frame : Anodised Aluminium / GIPC / Stainless Steel
Adhesive : Epoxy based adhesive for leak proof joint between filter
media and casing
Gel Used : A standard Silicon gel
Media: Micro glass fibre.
Grade/Type:F7 to H14
Temperature: Recommended for operating on ambient temperature.
Cleaning: Non-Washable
Product Range : Filter are available with air handling capacity in the
range of 100 CFM to 2000 CFM
Application:For HVAC and Clean room applications

Fan Filter Units

Frame : Anodized Aluminum & Stainless Steel used for housing of filter
Blower : Electric motor, single phase, 240volts, 50 HZ.Backward curved
centrifugal type.
Grade : F9toH15
Supply filter: ON/OFF switch with regulator is provided to regulate speed
Noise levels:< 68 Db

Hooded Air Filter

Frame Material : Anodized Aluminum ,GI (Powder coated) & Stainless
Steel
Mode Of Assembly: Hooded type ( HEPA/ULPA)
Filter Grading (Minipleat) : F7 to H14 & EU-15
Thermal Stability: Recommended for operating Temperature of 60°C
Construction:Construction: Our Hooded filters are designed for optimum filter performance with an individually flexible ducting system for used for clean rooms.

The disposable ceiling module is hermetically sealed to prevent the leakages in clean rooms.

Pocket Filter

Frame : Aluminum/GIPC/Stainless Steel
Adhesive: Epoxy based adhesive for leak proof joint between filter
media and casing
Gasket : Felt /Natural Rubber /PE foam gasket as per customers choice for sealing the filters on mounting frame
media: Non woven synthetic / Glass Fibre
Grade/Type:G3 to F9 / Box & Falange
Temperature: Recommended for operating on ambient temperature.
Cleaning: Washable by detergent I Water solution or by Air I vacuum cleaner as per design.
Product Range: Filter are available with air handling capacity in the range of 100 CFM to 2000 CFM
Application: For HVAC and Clean room applications

Activated Carbon Filter

Frame : Anodised Aluminium/GIPC/Stainless steel
Adhesive: Epoxy based adhesive for leak proof joint between filter media and casing.
Gasket : Natural Rubber / PE foam gasket.
media: High Loft Carbon GSM
Grade/Type:G3 to F9 / Box & Flange
Temperature:Recommended for operating on ambient temperature
Cleaning:Washable by detergent I Water solution or by Air /
vacuum cleaner as per design
Product Range:Filter are available with air handling capacity in the
Range of 100 CFM to 2000 CFM
Application:For HVAC and Clean room applications

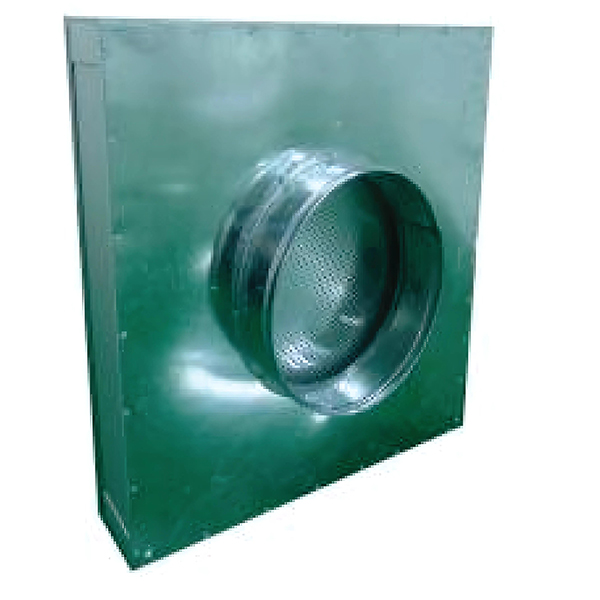

Filter Module & Grill

Frame : Anodised Aluminium/GIPC/Stainless steel
Duct connection: Rectangular connection, square and circular
Air Entry : Side & Top.
Housing type: Box type & Flange type with DOP & PAO port with
bottom control damper.
Grill Moc: Stainless steel
Standard Grill size:720×720, 720×415 etc.
Standard Housing size:680×680, 680×375 etc.
Application:For HVAC and Clean room applications

Bag Filter & Dust Collection System

Frame : Aluminum/ GIPC / Stainless Steel
Capacity: 1000 CFM to 15000 CFM
Media : Polyester PTFE, Non-Woven, Needle Felts.
Features: High performance, Low maintenance required
Application:Cement, Power, Process industries CNC Machining,
Grinding,Turning Milling, Drilling, Material handling, etc.

Paint Booth Filter

Frame : Aluminum./GIPC/Card board/Polystyrene plastic
Ceiling Media: Polyester non-woven fabric
Floor Media : Micro glass Fibre
Grade:G3-for floor filter & F5 for ceiling filter- Type
Box/Flange
Cleaning:Washable / Water solution or by Air / Vacuum cleaner
as per design
Temperature: 100*C to 120*C
Application: In paint booth

Cylindrical Air Filters

Frame :Galvanized steel, Stainless steel or Aluminum plate in
perforated or expanded sheet
Adhesive: Epoxy based adhesive for leak proof joint between filter
media and casing.
Floor Media : Sponge rubber/ Polyurethane Neoprene gasket
provided for sealing of filter on its mounting frame
Grade:Non woven synthetic , micro glass fibre .
Cleaning:G4 to H14
Temperature: Recommended for operating temperature upto
Ambient. Operating humidity up to 100% RH.
Cleaning: Washable & Non-Washable
Product Range: Filter are available with air handling capacity in the 100 CFM to 2000 CFM
Application: For HVAC and Clean room applications

Bag in Bag out Filter Systems

Housing Material of Construction: GI (Powder coated), Stainless steel.
Filter Material of construction :Anodized Aluminium, GI (powder coated)
Stainless steel
Filters used : PRE-FILTER HEPA or ULPA filter
Construction: Ultrafil make Bag in Bag Out Filter System provide a wide
performance for preventing the workers from bio-hazard organisms and
viruses while they are doing the regular HEPA or ULPA filter replacement
work. It is the most effective equipment available for any zone, needing a
special critical filtration cleanliness level and negative pressure environment.
The equipment is full welded with argon welding except maintenance access
door.Magnehelic gauge becomes standard for pre-filter, and ULPA or HEPA
filter. The basic housing is designed with respect to filter sizes. BIBO system
include high-capacity HEPA filters for service up to 2000 CFM.
